Hospital Breathing Ventilator Machine 12.1" TFT LCD Display

Ask Lasest Price
Brand Name :	guanxiong
Model Number :	ZXH-600D ICU
Supply Ability :	5000 Unit/Units per Month
Price :	$1,299.00 - $6,099.00/units
Certification :	CE
Payment Terms :	L/C, T/T
Delivery Time :	3-15 work days
MOQ :	1 Pc

Add to Cart

Product Details
Company Profile

Hospital Breathing Ventilator Machine 12.1" TFT LCD Display

Medical equipment Manufacturer Stand Breathing Machine Hospital ICU Medical Ventilators

Products Description

Our Ventilator Special Features

1.Display: 12.1" TFT LCD high-definition screen, the screen can be set from multiple angles

2.Pneumatic electric control, microcomputer control

3.Chinese and English operating systems are optional, and the shuttle button can be used to adjust the settings.

4.Standard medical grade air compressor, trolley structure is easy to move

5.Humidifier temperature control adjustment, over-temperature automatic power-off protection, to meet the safety requirements of patients for long-term use

6.With pure oxygen ventilation and atomization functions, the keyboard has the function of locking/unlocking.

7.Sound and light text multiple alarms, with warning color distinction.

8.With alarm log function

9.With built-in power supply, it can provide power supply support after power failure

10.Various ventilation modes are available: VCV, PCV, PSV, V-SIMV, P-SIMV, MMV, DEMO

11.Three waveforms (P-T waveform, F-T waveform, V-T waveform) and two annular graphs (P-V annular graph, F-V annular graph) are optional, which can monitor the patient's breathing in real time

12.Perfect alarm function

13.Tidal volume upper limit alarm, tidal volume lower limit alarm, respiratory rate upper limit alarm, respiratory rate lower limit alarm, airway peak pressure upper limit alarm, airway peak pressure lower limit alarm, PEEP upper limit alarm, PEEP lower limit alarm, oxygen concentration upper limit alarm, oxygen concentration lower limit Alarm, minute ventilation upper limit alarm, minute ventilation lower limit alarm, suffocation alarm, power failure alarm, battery undervoltage alarm, air supply failure alarm, oxygen supply failure alarm

If you need more product parameter,please send an inquiry to us~
Specification		Set Range
Inspired oxygen concentration	FiO2 21~100%
End-expiratory pressure PEEP	0~40cmH2O
Flow rate trigger sensitivity	0.5~20L/min
Tidal volume TV	0~2000mL
Breathing frequency f	4~99bpm
The respiratory ratio l:E	5.0:1~1:5.0
Pressure trigger sensitivity	－20~-1cmH2O
Inspiratory plateau	0~50%
Inspiratory waveform	Square wave,deceleration wave
Sigh multiples	1.0~2.0TV
SIMV rate	2~40bpm
Inspiratory time TI	0.1~12.0s
Support pressure	0~40cmH2O
Expiratory sensitivity	10~75%
Maximum inspiratory time	1.0~8.0s
Suction pressure	0~40cmH2O
Minimum tidal volume	50~1500ml
Backup frequency	2~40bpm
Target tidal volume	20~2000ml
Ventilation volume	0.5~40.0L/min

Other Parameter: Oxygen pressure:0.28~0.6 MPa Air pressure:0.28~0.6 MPa System noise:<65 dBA Power consumption:40VA Respiratory Mode: VCV,VC-SIMV,PC-SIMV,PCV,PSV,MMV

Alarm Parameter: Tidal volume range:0~2000ml Upper and lower respiratory rate:4~99bpm Peak pressure upper limit:0~100cmH20 Peak pressure lower limit:0~30cmH20 PEEP upper limit:0~60cmH20 PEEP lower limit 0~30cmH20 Minute ventilation,upper and lower limits:0~40.0L/min Suffocation time:4~20s±2s

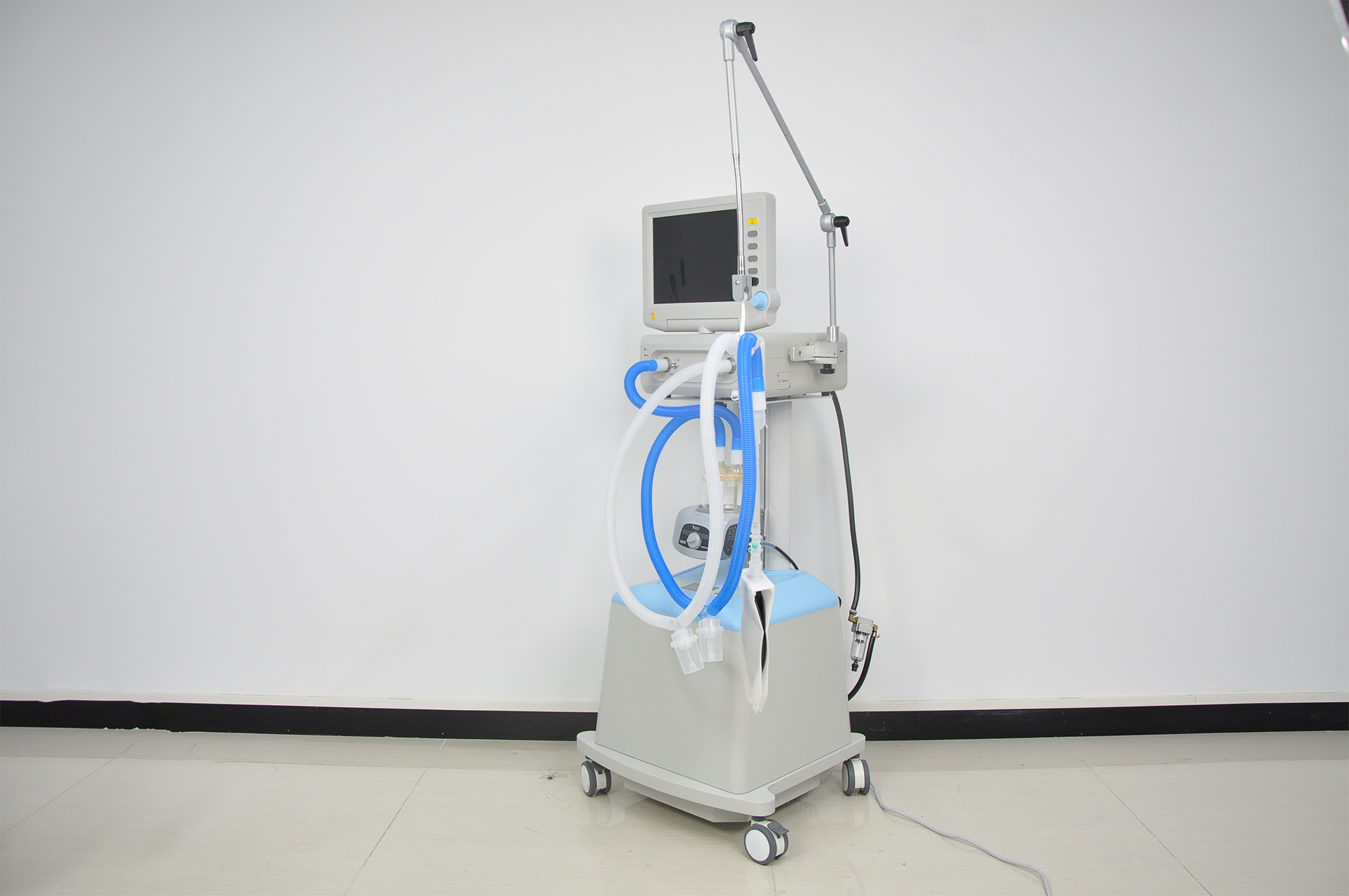

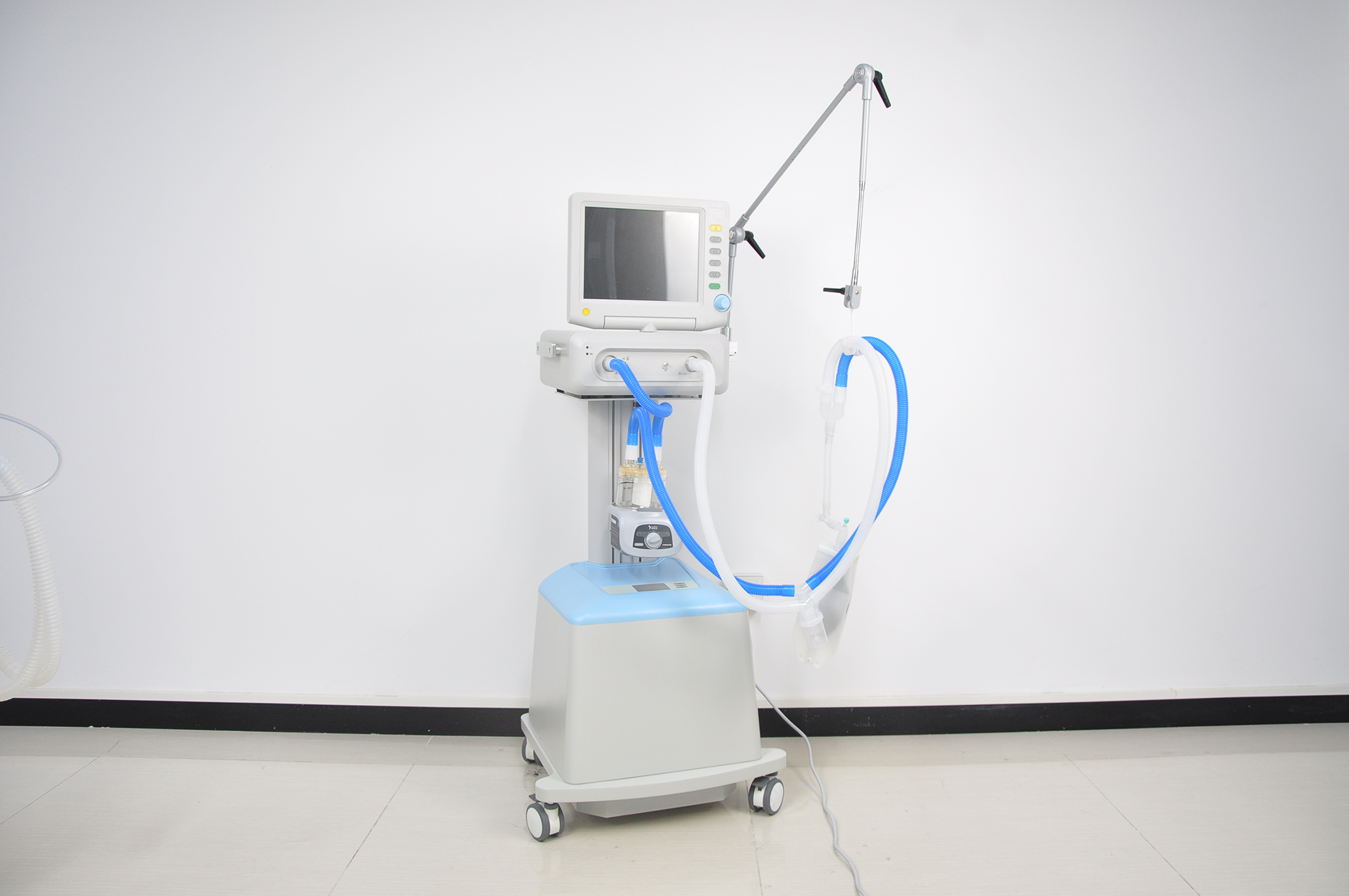

Details Images

Hospital Breathing Ventilator Machine 12.1" TFT LCD Display
