    Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine

    Ask Lasest Price
    Brand Name : guanxiong
    Model Number : CT-128
    Certification : CE
    Price : $380000/sets 1-99 sets
    Payment Terms : L/C, T/T
    Supply Ability : 500 Set/Sets per Month
    Delivery Time : 3-15 work days
    • Product Details
    • Company Profile

    Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine

    Premium Medical 128 Slice Computed Tomography System Imaging Scanner CT Scan Machine

    ClassificationnamePrecision 128Precision 128 MAX
    Rack systemAperture of frame71.5cm72cm
    Inclination angle of frame±30°±30°
    Scanning collimation4x0.625mm
    8x0.625mm
    16x0.625mm
    32x0.625mm
    64x0.625mm
    64x0.3125mm
    4x0.625mm
    8x0.625mm
    16x0.625mm
    32x0.625mm
    64x0.625mm
    64x0.3125mm
    Sampling rate5400 view/360°5400 view/360°
    Image collection128 floors/360°128 floors/360°
    Fastest speed0.72 sec/lap0.298 sec/lap
    Scanning visual field500mm500mm
    Data transmission modedigital transmissiondigital transmission
    Cooling modewind coolingwind cooling
    explorerNumber of detector rowsRow 64Row 64
    Number of detector units per row880880
    Total number of detector units5632056320
    Detector width40mm40mm
    Thinnest physical layer thickness0.625mm0.625mm
    X- ray systemfocusLarge: 1.2mmx1.4mm
    Small: 0.7mmx0.8mm
    Large: 1.2mmx1.4mm
    Small: 0.7mmx0.8mm
    Heat capacity of spherical tube3.5MHU7.5MHU
    Anode heat dissipation rate735KHU/min(8750W)1386KHU/min(16500W)
    Minimum output of bulb voltage60KV60KV
    Bulb tube voltage range60KV/70KV/80KV/100KV/120KV/140KV60KV/70KV/80KV/100KV/120KV/140KV
    Bulb tube current10mA-350mA10mA-800mA
    High voltage generator power42KW80KW
    Maximum continuous exposure time100seconds102seconds

    Precision 128 Max fully upgraded high performance Tubes


    The continuous scanning time of more than 100 seconds ensures the effect of the whole body large-scale vascular imaging.

    Real-time monitoring with AI techniques automatically triggers scanning procedure when the contrast agent reaches targeted vessels,which improves the success rate and image quality of cardiovascular imaging.

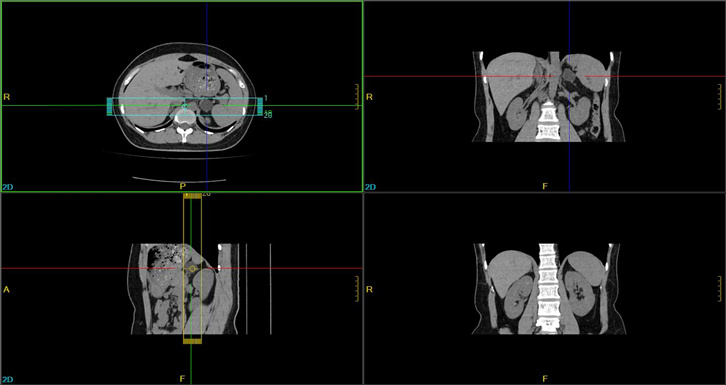

    Intelligent medical imaging workstation


    The homemade CIW workstation completely complies with the standard of medical image, and can realize the

    functions of obtaining, processing, analyzing, managing, archiving, querying, browsing, printing, standard image

    format output, report writing and so on. At the same time, it has many advanced clinical applications.
