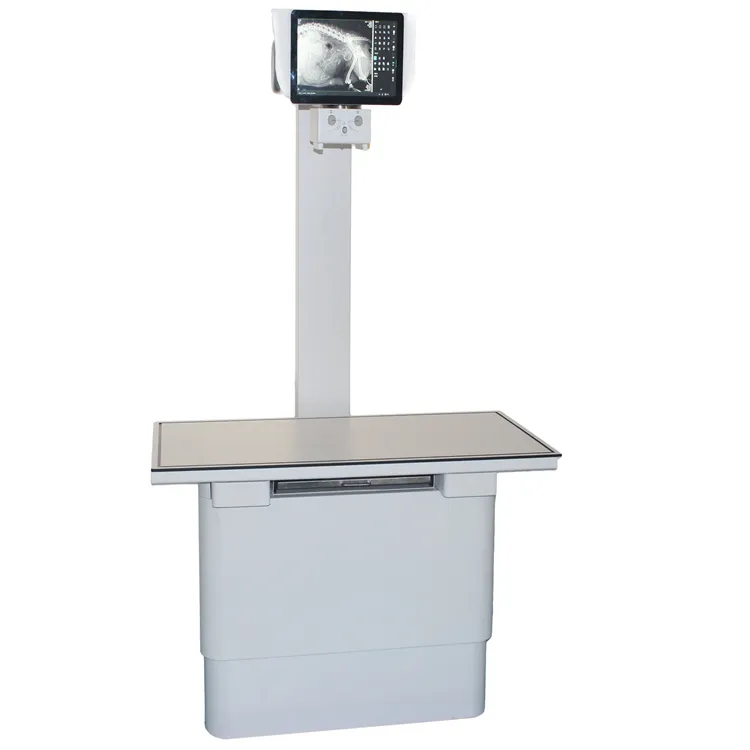

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Product Categories

Jiangsu Xiangyou Medical Instrument Co., Ltd.

Contact Now

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Ask Lasest Price
Brand Name :	guanxiong
Model Number :	XY-DR320
Certification :	CE
Price :	$29900-16000/sets 1-99 sets
Payment Terms :	L/C, T/T
Supply Ability :	500 Set/Sets per Month
Delivery Time :	3-15 work days

Add to Cart

Product Details
Company Profile

32KW Digital Vet DR X-ray Table Small Animal Xray Fluoroscopy Equipment Fixed Veterinary Dog X Ray Machine

Hot selling animal radiology equipment veterinary xray system x-ray machine dr

Power voltage	1-phase 220VAC ±10%,50Hz,16A；3-phase 380VAC±10%
Maximum Working Frequency	≥30KHz
Nominal Electric Power	20kw(@100kv,200mA,100ms)
KV range	40-125KV
mA range	10-320mA
mAs range	0.1-400mAs
Photoformy time	3ms-6300ms

X ray machine parameter:

Working voltage:40KV-125KV Maximum power (0.1 S): Small focus 20
kw, Large focus 40 kW Nominal value :Large focus 1.2,Small focus
0.6 Maximum heating filament characteristics :5.3A Anode speed
(50HZ) :2800rpm Anode angle :12° Inherent filtering: 1.0mmAL/75kV
Anode Heat Content: 110KJ(150KHU) Tube component heat capacity:
900KJ(1300KHU)

Flat panel detector parameter:

Flat Panel Detectors Detector Technology : a-Si Scintillator: CsI
Image Size: 35×43 cm Pixel Matrix: 2560×3072 (14×17 in) Pixel
Pitch: 140 μm A/D Conversion: 16 bit Minimum Detectable Dose: 14
nGy Maximum Linear Dose (RQA5): 110 μGy Spatial Resolution: 3.6
LP/mm Data Interface: GigE /802.11ac Power Dissipation: 20 W
Adapter Input: AC 100-240V,50-60Hz Dimensions: 38×46×1.5 cm
weight:3.3kgwireles/2.9kg wired

Analogue x ray machine accessories:1. x ray machine with tube and table 1pcs
generator 1pcs
Wired DR x ray machine accessries:
x ray machine with tube and table 1pcs
generator 1pcs
wired flat panel detector 1pcs
software 1pcs
laptop 1pcs
